Metering systems

Skid-mounted fiscal metering systems for the transfer of raw and refined petroleum products between tanks, tankers and ships.

We design and manufacture skid-mounted fiscal metering systems suitable for a broad range of custody transfer applications.

Our solutions are scalable from a single lane fiscal metering skid to complete storage terminal management solutions and are all designed to provide quality, ease of maintenance and accuracy.

Skid-mounted solution reduces time on site making the project cheaper, safer, and more convenient.
Can be engineered to incorporate multiple options.
Engineering knowledge to deliver a solution designed to your requirements.

Added value

Partners

We have access to industry-leading products at competitive rates.

Expertise

Decades of experience in fluid transfer.

Proven results

Successfully used globally by many major oil and tank storage companies.

Bespoke

We always custom-build to your requirements.

Measurement and flow

We are hyper-focused on measurement and flow.

Fiscal meter skids

Metering skids can be engineered to incorporate any of the following options as required by the application:

Modular construction for ease of transport
MID / OIML compliant
Built in de-aeration
On or off-skid control
Integrated meter proving
Fiscal flow control and supervisory system
Systems can be trailer mounted for portable use

We build our systems offsite in skid form. The advantages of this approach include;

The system can be piped, cabled and flow tested in advance of delivery.
Snagging is done off-site which minimises site assembly and start-up time.
Large skids can be built in modular form to allow road transportation.
All welding, assembly and testing is performed at our fully fitted facility in Hampshire by qualified and experienced personnel.

Flow meters

Flow meters are core to many of the systems we design and build. They are key not only in the function of metering skids but also loading skids, offloading skids, additive injection and blending skids.

We build skids using a broad range of meter manufacturers and technologies but when it comes to custody transfer of petroleum products we believe Brodie International’s range of high-precision liquid flow meters and valves are second to none for quality, performance and value for money.

The growing portfolio Brodie offers includes fiscal measurement solutions which apply across the upstream and downstream petroleum markets.

Brodie manufactures the following:

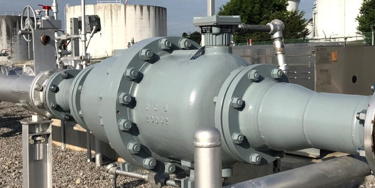

Positive Displacement (PD) Flow Meters - high accuracy positive displacement flow meters ranging from a 1/2” Oval Meter to a 16” BiRotor P-Style. See our full PD Flow Meter portfolio for detailed information.
Piston Control Valves – a complete set of multiple control actions and types which are based upon a consistent single design base. See the Piston Control Valve portfolio for more information.

Here to help with seamless delivery and management of your next process industry project.

Our experts are available to advise, support, and assist with any issues relating to your storage tanks and liquid process infrastructure ensuring you have a safe site, prevent any pollution, and remain operational.
